Intelligent Standards-Based
HF Communications Software

Interoperability — Emergency and Disaster relief — Grid-down communications

Build reliable standard-based products for HF communications

We provide standards-based software for building reliable communications networks over HF radio frequencies. Emergency and grid-down communications, humanitarian relief, and asset tracking with global reach. Our field-proven software is in use today 24/7 across many services including Army and Air Force MARS, Department of Homeland Security SHARES network, USCG Auxiliary, and the amateur radio service. Fully interoperable with all standards-compliant assets in your network.

Current available products

  • MIL-STD-188-141B (ALE 2G) and CCIR-493-4 (SELCALL) - Embedded SDK for development of commercial products. Cross platform support, including Linux, BSD, Windows, and Mac OS support on x86_64 and ARM platforms. Includes easy to use API, documentation, and example code. Binary and full source-code licensing options are available. Please click here to contact us for information.
  • ION2G - Graphical Communications Terminal - Easy to use graphical software for stations operating in MIL-STD-188-141B (ALE 2G) and CCIR-493-4 (SELCALL) networks. Includes ALE/SELCALL controller, Station Directory, Propagation analysis, and Tactical Messaging. This software is cross-platform and runs on Windows 10/11 (64-bit), Linux, and MacOS. ION2G can be used with HF radios from manufactures like Icom, Yaesu, Kenwood, and others. Licensing for commercial, GO, and NGOs is available. Please click here to contact us for information.

ION2G: Staying connected without dependence on infrastructure

ION2G is communications terminal software that brings HF Automatic Link Establishment (ALE) MIL-STD-188-141B and CCIR-493-4 (SELCALL) to your computer with a familiar and easy to use graphical interface. ION2G helps you stay connected to the people you need to communicate with across thousands of miles without dependence on infrastructure. Using ALE and smart algorithms, ION2G automatically finds HF radio communications channels through the constantly changing ionosphere -- while avoiding busy HF frequencies and interference. ION2G takes the guesswork out of finding a frequency to use and will find usable radio channels that even experienced HF operators may miss.

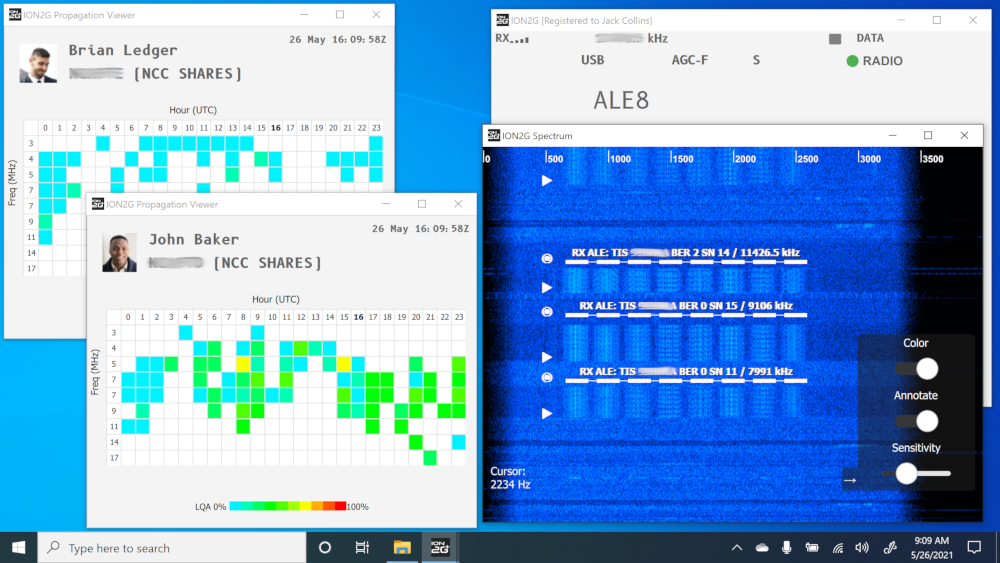

Includes full ALE 2G controller, propagation analysis, radio control, and tactical chat.

ION2G is interoperable over-the-air with ALE 2G and SELCALL radios from all major manufactures, including Codan, Barrett, Icom, Yaesu, and Kenwood.

ION2G is cross-platform and runs on Windows 10, Windows 11 (64-bit), Linux, and MacOS. ION2G can be used with radios from manufactures like Icom, Yaesu, Kenwood, and others. New radio support is under active development.

Low cost licensing is available for non-commercial, non-government, volunteer use. If you need licensing for commercial or government applications, please click here to contact us for information

Friendly and easy to use

Friendly

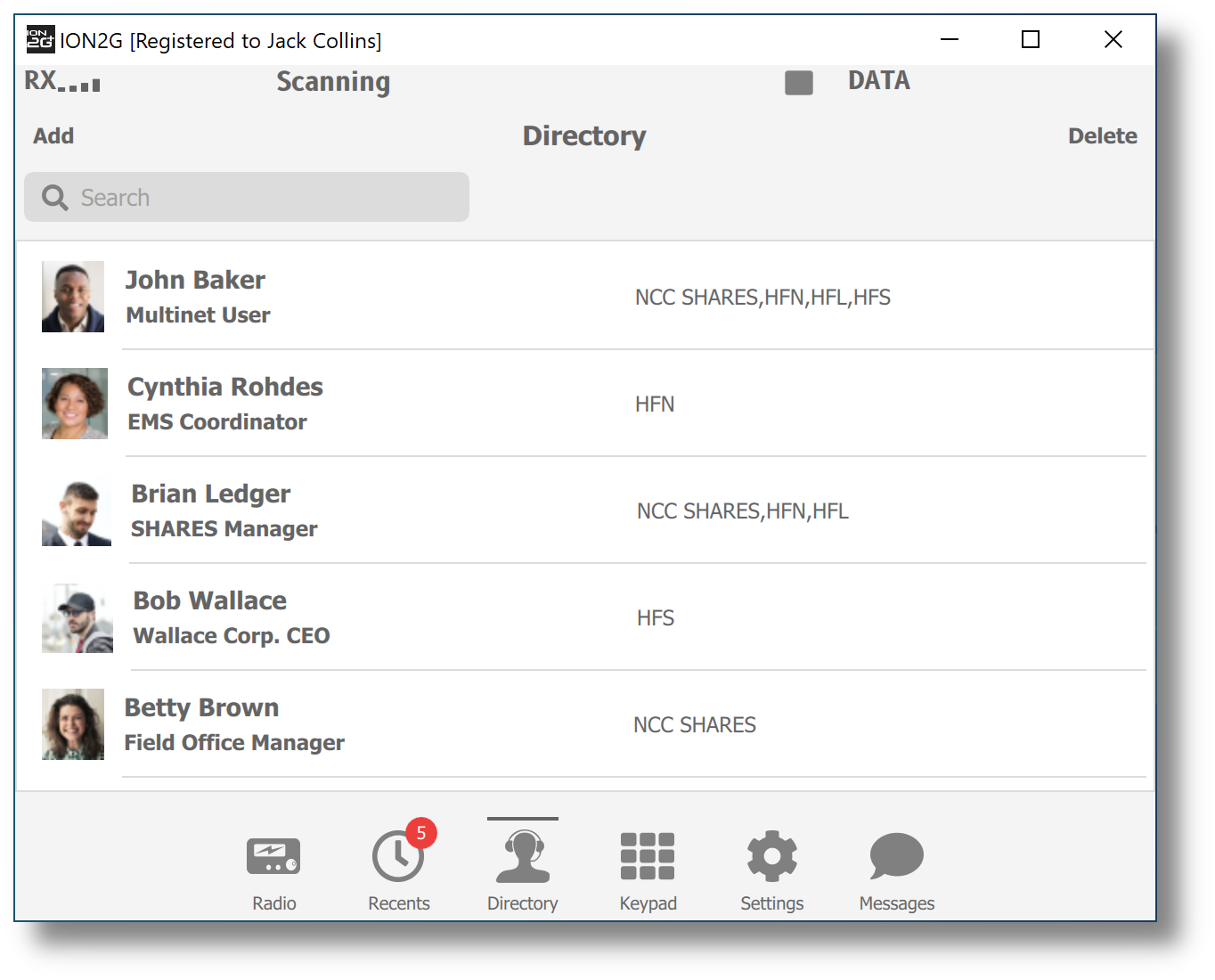

An easy to use interface designed with a focus on people and communicating with them. With features including a contacts directory, advanced propagation tracking, and robust text messaging, ION2G gets out of your way — and lets you stay focused on what matters.

Intelligent channel management and link establishment

Intelligent

Uses intelligent algorithms to track patterns in channel occupancy, avoid interference, and automatically select the best channel for your communications.

Interoperable with major radio brands

Interoperable

Built on open-standard field proven communications protocols. A single unified software solution enabling communication with any stations running ALE 2G (MIL-STD-188-141B) or SELCALL (CCIR-493-4).


Radio Support

Radio Support

ION2G Currently supports the following radios:

  • Icom F8101
  • Icom IC7300
  • Icom IC7610
  • Icom IC706MKII and MKIIG
  • Icom IC7100
  • Icom IC7200
  • Icom IC746PRO
  • Icom Generic (various other models) (alpha)
  • Kenwood TK-90 (alpha)
  • Kenwood TS-590/TS-590S (alpha)
  • Kenwood TS-570/TS-570S (alpha)
  • Kenwood Generic (various other models)
  • Flex Radio (6xxx series) (provisional)
  • Codan NGT CICS (alpha)
  • Yaesu FT991A (alpha)
  • Yaesu FTdx10 (alpha)
  • Yaesu FTdx-101MP (alpha)
  • Yaesu FT-100D (alpha)
  • Yaesu FT-891
  • Yaesu FT-897
  • Yaesu FT-710 AESS
  • Yaesu Generic (various models)
  • Xiegu G90 (alpha; works with IC-7100 Emulation, 19200/N/8/2 CIV address 0x88)
  • FLRig Radio Interface
    • Support for a large number of radios: See the list here.

Support for new radios is under development, so if your radio is not listed here, please contact us or join the ION2G groups.io community and ask.


Collaborate

Collaborate

Join our groups.io community to ask questions, get help with setup and configuration.


Register

Register

ION2G BETA is available for use by SHARES stations, USCG Auxiliary, Army and Air Force MARS, and radio amateurs on the ham bands. The current BETA version can be downloaded and tested for free and will run UNREGISTERED without restrictions or timeouts. However, by purchasing a BETA version license for $20 USD and registering your copy of ION2G, you get a personalized permanent license and CCIR-493-4 SELCALL address assignment, and your purchase helps fund ongoing development of this software.

If you are interested in using ION2G for commercial or organizational use other than MARS, SHARES, or USCG Aux, please contact us for more information.

Click here to purchase a low cost non-commercial use license for your station. After you have completed the purchase you will be presented with a link to the registration page to complete your license request. It is important that you provide a valid email address. Some browsers have problems displaying the registration link after purchase. If you are not presented with the registration link after you complete your purchase, we will contact you at the email address associated with your paypal account.

Donate

Download

The current beta release of ION2G+ is 0.9.8.4. If you have an earlier version of ION2G, please read the changelog before upgrading. ION2G+ is available for Windows (10 and 11), and MacOS (currently still on 0.9.8.3).

Want to learn More?

Feedback or questions? Feel free to contact us!
